ACSR Conductor-Aluminum Conductor Steel Reinfored

Professional ACSR conductor cable manufacturer from China, Meet your kinds of requirement acsr conductor cable With over 30 years production experience and 15 years of export experience, factory price without any third party. Can be customized your ideal size.

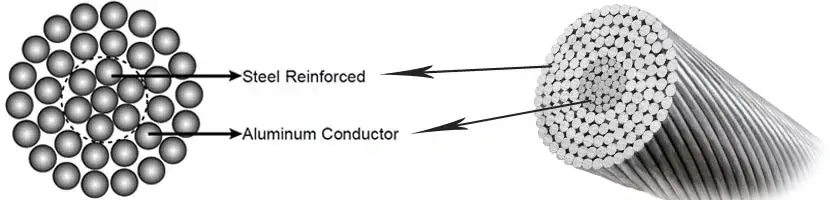

Character：1.Aluminum Conductor； 2.Steel Reinforced； 3.Bare.

Application：
Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

Code Name-BS Standard：

[su_spoiler title=”ACSR Moose” style=”fancy” icon=”plus-circle”]
Item ACSR Moose Details:

Code name Moose
Nominal aluminum area mm2 500
Stranding structure Al. No. 54
Al. Dia. 3.53
St. No. 7
St. Dia 3.53
Sectional area of aluminum mm2 528.70
Total sectional area mm2 597.20
Overall diameter mm 31.77
Total kg/km 1999
Calculated breaking load daN 16110
Calculate D.C resistance at 20℃ Ω/km 0.0547
Current Rating A 763

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Dog” style=”fancy” icon=”plus-circle”]

Item ACSR Dog Details:

Code name Dog
Nominal aluminum area mm2 100
Stranding structure Al. No. 6
Al. Dia. 4.72
St. No. 7
St. Dia 1.57
Sectional area of aluminum mm2 105.00
Total sectional area mm2 118.50
Overall diameter mm 14.15
Total kg/km 394
Calculated breaking load daN 3270
Calculate D.C resistance at 20℃ Ω/km 0.2733
Current Rating A 278

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Rabbit” style=”fancy” icon=”plus-circle”]

Item ACSR Rabbit Details:

Code name Rabbit
Nominal aluminum area mm2 50
Stranding structure Al. No. 6
Al. Dia. 3.35
St. No. 1
St. Dia 3.35
Sectional area of aluminum mm2 52.88
Total sectional area mm2 61.70
Overall diameter mm 10.05
Total kg/km 214
Calculated breaking load daN 1835
Calculate D.C resistance at 20℃ Ω/km 0.5426
Current Rating A 185

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Lynx” style=”fancy” icon=”plus-circle”]

Item ACSR Lynx Details:

Code name Lynx
Nominal aluminum area mm2 175
Stranding structure Al. No. 30
Al. Dia. 2.79
St. No. 7
St. Dia 2.79
Sectional area of aluminum mm2 183.40
Total sectional area mm2 326.20
Overall diameter mm 19.53
Total kg/km 842
Calculated breaking load daN 7980
Calculate D.C resistance at 20℃ Ω/km 0.1576
Current Rating A 386

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Racoon” style=”fancy” icon=”plus-circle”]

Item ACSR Racoon Details:

Code name Racoon
Nominal aluminum area mm2 75
Stranding structure Al. No. 6
Al. Dia. 4.10
St. No. 1
St. Dia 4.10
Sectional area of aluminum mm2 79.20
Total sectional area mm2 92.40
Overall diameter mm 12.30
Total kg/km 320
Calculated breaking load daN 2720
Calculate D.C resistance at 20℃ Ω/km 0.3622
Current Rating A 231

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Panther” style=”fancy” icon=”plus-circle”]

Item ACSR Panther Details:

Code name Panther
Nominal aluminum area mm2 200
Stranding structure Al. No. 30
Al. Dia. 3.00
St. No. 7
St. Dia 3.00
Sectional area of aluminum mm2 212.10
Total sectional area mm2 261.50
Overall diameter mm 21.00
Total kg/km 974
Calculated breaking load daN 9225
Calculate D.C resistance at 20℃ Ω/km 0.1363
Current Rating A 421

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Zebra ” style=”fancy” icon=”plus-circle”]

Item ACSR Zebra Details:

Code name Zebra
Nominal aluminum area mm2 400
Stranding structure Al. No. 54
Al. Dia. 3.18
St. No. 7
St. Dia 3.18
Sectional area of aluminum mm2 428.90
Total sectional area mm2 484.50
Overall diameter mm 28.62
Total kg/km 1621
Calculated breaking load daN 13190
Calculate D.C resistance at 20℃ Ω/km 0.0674
Current Rating A 635

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Weasel ” style=”fancy” icon=”plus-circle”]

Item ACSR Weasel Details:

Code name Weasel
Nominal aluminum area mm2 30
Stranding structure Al. No. 6
Al. Dia. 2.59
St. No. 1
St. Dia 2.59
Sectional area of aluminum mm2 31.61
Total sectional area mm2 36.88
Overall diameter mm 7.77
Total kg/km 128
Calculated breaking load daN 1146
Calculate D.C resistance at 20℃ Ω/km 0.9077
Current Rating A 134

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Wolf” style=”fancy” icon=”plus-circle”]

Item ACSR Wolf Details:

Code name Wolf
Nominal aluminum area mm2 150
Stranding structure Al. No. 30
Al. Dia. 2.59
St. No. 7
St. Dia 2.59
Sectional area of aluminum mm2 158.10
Total sectional area mm2 194.90
Overall diameter mm 18.13
Total kg/km 726
Calculated breaking load daN 6920
Calculate D.C resistance at 20℃ Ω/km 0.1828
Current Rating A 355

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Coyote” style=”fancy” icon=”plus-circle”]

Item ACSR Coyote Details:

Code name Coyote
Nominal aluminum area mm2 125
Stranding structure Al. No. 26
Al. Dia. 2.54
St. No. 7
St. Dia 1.91
Sectional area of aluminum mm2 132.10
Total sectional area mm2 152.20
Overall diameter mm 15.89
Total kg/km 522
Calculated breaking load daN 4640
Calculate D.C resistance at 20℃ Ω/km 0.2187
Current Rating A 311

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Squirrel” style=”fancy” icon=”plus-circle”]

Item ACSR Squirrel Details:

Code name Squirrel
Nominal aluminum area mm2 20
Stranding structure Al. No. 6
Al. Dia. 2.11
St. No. 1
St. Dia 2.11
Sectional area of aluminum mm2 20.94
Total sectional area mm2 24.43
Overall diameter mm 6.33
Total kg/km 85
Calculated breaking load daN 788
Calculate D.C resistance at 20℃ Ω/km 1.3680
Current Rating A 109

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Mink” style=”fancy” icon=”plus-circle”]

Item ACSR Mink Details:

Code name Mink
Nominal aluminum area mm2 60
Stranding structure Al. No. 6
Al. Dia. 3.66
St. No. 1
St. Dia 3.66
Sectional area of aluminum mm2 63.18
Total sectional area mm2 73.71
Overall diameter mm 10.98
Total kg/km 255
Calculated breaking load daN 2180
Calculate D.C resistance at 20℃ Ω/km 0.4545
Current Rating A 174

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

Code Name-Canadian/Americian Standard：

[su_spoiler title=”ACSR Drake” style=”fancy” icon=”plus-circle”]

Item Drake Mink Details:

Code name Drake
Area Aluminum AWG or MCM 795.000
mm2 402.84
Steel mm2 65.51
Total mm2 468.45
Stranding and diameter Aluminum mm 26/4.44
Steel mm 7/3.45
Approximate overall diameter mm 28.11
Linear mass Aluminum kg/km 1116.0
Steel kg/km 518
Total. kg/km 1628
Rated tensile strength daN 13992
Maximum D.C. Resistance at 20℃      Ω/km 0.07191
Cuttent Rating A 614

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]
[su_spoiler title=”ACSR Hawk” style=”fancy” icon=”plus-circle”]

Item Hawk Mink Details:

Code name Hawk
Area Aluminum AWG or MCM 477.000
mm2 241.68
Steel mm2 39.42
Total mm2 281.10
Stranding and diameter Aluminum mm 26/3.44
Steel mm 7/2.67
Approximate overall diameter mm 21.79
Linear mass Aluminum kg/km 670.0
Steel kg/km 308.0
Total. kg/km 978.0
Rated tensile strength daN 8665
Maximum D.C. Resistance at 20℃      Ω/km 0.11990
Cuttent Rating A 455

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Rail” style=”fancy” icon=”plus-circle”]

Item Hawk Rail Details:

Code name Rail
Area Aluminum AWG or MCM 954.000
mm2 483.42
Steel mm2 33.42
Total mm2 516.84
Stranding and diameter Aluminum mm 45/3.70
Steel mm 7/2.47
Approximate overall diameter mm 29.61
Linear mass Aluminum kg/km 1339.0
Steel kg/km 262
Total. kg/km 1601
Rated tensile strength daN 11585
Maximum D.C. Resistance at 20℃      Ω/km 0.05992
Cuttent Rating A 679

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Dove” style=”fancy” icon=”plus-circle”]

Item Hawk Dove Details:

Code name Dove
Area Aluminum AWG or MCM 556.500
mm2 282.00
Steel mm2 45.94
Total mm2 327.94
Stranding and diameter Aluminum mm 26/3.72
Steel mm 7/2.89
Approximate overall diameter mm 23.55
Linear mass Aluminum kg/km 781.0
Steel kg/km 359.0
Total. kg/km 1140.0
Rated tensile strength daN 10103
Maximum D.C. Resistance at 20℃      Ω/km 0.10270
Cuttent Rating A 499

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

  Plese check the code name, Our competitive price will send you in 12 hours.

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

Other Standard：

,
,
,
,
,
,
,
,
,

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

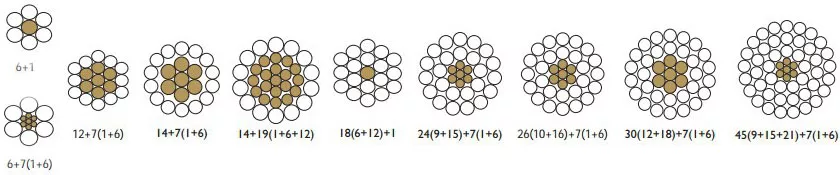

ACSR Conductor-structure-1

ACSR Conductor-structure-2

[row class=prodetails]

ACSR Conductor Technical Parameter:

[column lg=”12″ md=”12″ sm=”12″ xs=”12″ ]

[su_spoiler title=”ACSR Conductor Parameter- U.S.A- ASTM B 232″ style=”fancy” icon=”plus-circle”]

ACSR conductor-ASTM B 232/B 232M
CodeStrandingStrandingOverall DiameterWeightBreakign LoadElectrical Resistance @20oCurrent Rating*
ALSteelALSteelTotal
No.xmmNo.xmmmm^2mm^2mm^2mmKg/KmKNΩ/KmA
Turkey13.32.226/1.681/1.685.0415.5253.64.982.149976
Swan21.183.536/2.121/2.126.3624.7185.37.831.3501101
Swanate21.125.357/1.961/2.616.5326.4799.69.791.3539102
Sparrow33.595.66/2.671/2.678.0139.19135.711.920.8512135
Sparate33.548.557/2.471/3.308.2442.09158.715.080.8525135
Robin42.417.076/3.001/3.00949.48171.114.860.6742156
Raven53.528.926/3.371/3.3710.1162.44216.118.330.5343180
Quail67.3311.226/3.781/3.7811.3478.5527222.460.4247207
Pigeon85.1214.196/4.251/4.2512.7599.3134328.020.3359239
Penguin107.2217.876/4.771/4.7714.31125.09432.735.360.2667275
Waxwing134.987.518/3.091/3.0915.45142.48430.229.80.2129313
Partridge134.8721.9926/2.577/2.0016.28156.86545.947.150.2141316
Ostrich152.1924.7126/2.737/2.1217.28176.9613.453.380.1897341
Merlin170.229.4618/3.471/3.4717.35179.68542.837.360.1688361
Linnet170.5527.8326/2.897/2.2518.31198.38687.559.160.1693365
Oriole170.539.7830/2.697/2.6918.83210.28783.372.060.1698367
Chickadee200.9311.1618/3.771/3.7718.85212.09641.343.150.143400
Brant201.5626.1324/3.277/2.1819.62227.6976161.830.1433403
Ibis201.3432.7326/3.147/2.4419.88234.07812.468.050.1434404
Lark200.946.8830/2.927/2.9220.44247.78925.284.070.1441406
Pelican242.3113.4618/4.141/4.1420.7255.77769.751.150.1186448
Flicker241.5831.424/3.587/2.3921.49272.98913.572.060.1195450
Hawk241.6539.1926/3.447/2.6721.77280.84975.181.840.1195451
Hen241.2756.330/3.207/3.2022.4297.571110.698.30.12453
Osprey282.4715.6918/4.471/4.4722.35298.16897.759.60.1017492
Parakeet282.3136.624/3.877/2.5823.22318.911065.683.180.1023495
Dove282.5945.9226/3.727/2.8923.55328.511138.694.30.1022497
Eagle282.0765.8230/3.467/3.4624.22347.891295.6114.760.1026499
Peacock306.1339.7824/4.037/2.6924.19345.911158.990.740.0943520
Squab305.8349.8126/3.877/3.0124.51355.641237101.410.0944521
Wood Duck307.0671.6530/3.617/3.6125.27378.711408.4121.430.0943525
Teal*307.0669.6230/3.6119/2.1625.24376.681396.6124.540.0943525
Kingbird323.0117.9518/4.781/4.7823.9340.961026.668.050.089533
Swift323.028.9736/3.381 /3.3823.66331.99956.560.050.089532
Rook323.0741.8824/4.147/2.7624.84364.951217.595.190.0894537
Grosbeak321.8452.4926/3.977/3.0925.15374.331300.8104.970.0897537
Scoter322.5675.2630/3.707/3.7025.9397.821480.7127.660.0897541
Egret*322.5673.5430/3.7019/2.2225.9396.11469130.770.0897541
Flamingo337.2743.7224/4.237/2.8225.38380.991276.699.640.0856551
Gannet338.2654.926/4.077/3.1625.76393.161363.3110.310.0854553
Stilt363.2746.8824/4.397/2.9226.32410.151370.4107.20.0795576
Starling361.9359.1526/4.217/3.2826.68421.081463.7118.320.0798577
Redwing*362.0682.4130/3.9219/2.3527.43444.471650.6143.230.0799580
Coot401.8611.1636/3.771/3.7726.39413.021195.873.390.0715607
Tern403.7727.8345/3.387/2.2527.03431.61331.894.30.0715610
Condor402.3352.1554/3.087/3.0827.72454.481520.7118.320.0718612
Cuckoo402.3352.1524/4.627/3.0827.72454.481522.2117.430.0718612
Drake402.5665.4426/4.447/3.4528.114681626.4131.660.0717615
Mallard*403.8491.7826/4.447/3.4528.96495.621836159.240.0717619
Ruddy455.531.6745/3.597/2.4028.74487.171507.3104.530.0634656
Canary456.2859.1554/3.287/3.2829.52515.431723.1134.330.0633660
Catbird484.6113.4636/4.141/4.1428.98498.071434.486.740.0593679
Rail483.8433.5445/3.707/2.4729.61517.381598.1110.760.0597680
Cardinal484.5362.8154/3.387/3.3830.42547.341825.9142.340.0596685
Cardinal484.5362.8154/3.387/3.3830.42547.341825.9142.340.0596685
Tanager522.7914.5236/4.301/4.3030.1537.311553.593.850.055710
Orotlan523.8736.3145/3.857/2.5730.81560.181730.5118.320.0551713
Curlew522.5167.7354/3.517/3.5131.59590.241977.6153.90.0553716
Bluejay565.4938.945/4.007/2.6631.98604.391866127.660.0511745
Finch*565.0371.5754/3.6519/2.1932.85636.62127.8164.580.0514748
Bunting605.7641.8845/4.147/2.7633.12647.641996.9136.550.0477776
Grackle*602.7976.8954/3.7719/2.2733.97679.682278.1176.590.0481777
Skylark646.0217.9536/4.781/4.7833.46663.971913.6115.650.0445804
Bittern644.444.6645/4.277/2.8534.17689.062130.8145.890.0448805
Pheasant*645.0881.7154/3.9019/2.3435.1726.792431.4183.260.045808
Dipper684.2447.245/4.407/2.9335.19731.442263.2154.790.0422834
Martin*685.3986.6754/4.0219/2.4136.17772.062581.7194.820.0423838
Bobolink725.2750.1445/4.537/3.0236.24775.412397.2164.130.0398862
Plover*726.9291.7854/4.1419/2.4837.24818.72734.9206.390.0399866
Nuthatch764.252.8345/4.657/3.1037.2817.032529.6171.250.0378888
Parrot*766.0697.0354/4.2519/2.5538.25863.092883.7217.510.0379892
Lapwing807.5355.645/4.787/3.1838.22863.132663.5180.140.0358916
Falcon*806.23102.4354/4.3619/2.6239.26908.663038.5229.520.036919
Chukar*903.1873.5484/3.7019/2.2240.7976.723083.1217.510.0321976
Bluebird*1092.8488.8484/4.0719/2.4444.761181.683731.9256.650.02661083
Kiwi*1099.7647.5272/4.417/2.9444.11147.283423.9215.280.02641083
Thrasher*1171.4263.9476/4.4319/2.0745.791235.363754.2243.750.02481122
Grouse**40.5414.128/2.541/4.249.3254.66221.421.750.7089153
Petrel**51.6130.112/2.347/2.3411.781.71377.742.080.5595181
Minorca**56.1132.7312/2.447/2.4412.288.84411.145.810.5146191
Leghorn**68.239.7812/2.697/2.6913.45107.98499.255.160.4234215
Guinea**80.3646.8812/2.927/2.9214.6127.24589.764.940.3593238
Dotterel**89.4152.1512/3.087/3.0815.4141.56656.170.280.323254
Dorking**96.5156.312/3.207/3.2016152.81707.875.620.2992267
Cochin**107.0462.4412/3.377/3.3716.85169.48783.984.070.2698284
Brahma*&**102.7991.7812/3.377/3.3718.12194.571003.8114.760.2809283

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Conductor Parameter- BS 215-2 Standard” style=”fancy” icon=”plus-circle”]

ACSR conductor-BS 215-2
CodeNominal AreaStrandingOverall DiameterWeight(CU)Rated StrengthElectrical Resistance @20o
ALSteelTotalALSteelCoreTotalALSteelTotal
NominalTeorical
mm^2mm^2mm^2mm^2No.xmmNo.xmmmmmmKg/KmKg/KmKg/KmKNΩ/Km
Mole1010.621.7712.396/1.501/1.501.54.52914434.142.706
Squirrel2020.943.4924.436/2.111/2.112.116.335728857.881.368
Gopher2526.244.3830.626/2.361/2.362.367.0871351069.611.093
Weasel3031.615.2736.886/2.591/2.592.597.77874112811.450.9077
Fox3536.666.1142.776/2.791/2.792.798.371014814913.20.7822
Ferret4042.417.0749.486/3.001/3.00391175517215.20.6766
Rabbit5052.888.8261.76/3.351/3.353.3510.051456921418.350.5426
Mink6063.1810.5373.716/3.661/3.663.6610.98171842552.180.4545
Shunk6063.2737.03100.312/2.597/2.597.7712.951782874655.30.4567
Beaver7074.8212.4787.296/3.991/3.993.9911.97203993022.570.3825
Horse7073.3742.63116.212/2.797/2.798.3713.9520333553861.20.3936
Racoon7579.213.292.46/4.11/4.14.112.321610432027.20.3622
Otter8083.8813.9897.866/4.221/4.224.2213.9822611333928.80.3419
Cat9095.4415.86111.36/4.51/4.54.515.925812838632.70.3007
Hare10010517.5122.56/4.721/4.724.7217.5284141425360.2733
Dog10010513.5118.56/4.727/1.574.7114.1528810639432.70.2733
Hyena100105.820.4126.27/4.397/1.935.7914.5725020045040.90.2712
Leoperd125131.316.8148.18/5.287/1.755.2515.8131018249240.70.2184
Coyotte125132.120.1152.226/2.547/1.915.7315.8941011252246.40.2187
Congar125130.37.2137.518/3.051/3.053.0515.253615841929.80.2189
Tiger125131.130.6161.730/2.367/2.367.0816.52365237602580.2202
Wolf150158.136.8194.930/2.597/2.597.7718.1344128572669.20.1828
Dingo150158.78.8167.518/3.351/3.353.3516.754376950635.70.1815
Lynx175183.442.8226.230/2.797/2.798.3719.5350733584279.80.1576
Caracal175184.310.2194.518/3.611/3.613.6118.055078058741.10.1563
Panther200212.149.4261.530/3.007/3.0092158638897492.250.1363
Jaguar200210.611.7222.318/3.861/3.863.8619.35809167146.550.1367
Lion225238.555.7294.230/3.187/3.189.5422.266574381095100.60.1212
Bear25026461.6325.630/3.357/3.3510.0523.457284851213111.10.109
Goat300324.375.740030/3.717/3.7111.1325.798945951489135.70.0891
Sheep350374.187.3461.430/3.997/3.9911.9727.9310316871718155.90.077
Antilope350373.148.4421.554/2.977/2.978.9126.7310403711411118.20.0772
Bizon350381.849.5431.354/3.007/3.0092710643801444120.90.7573
Zebra400428.955.6484.554/3.187/3.189.5428.6211854361621131.90.0674

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR conductor-IEC 61089 Standard” style=”fancy” icon=”plus-circle”]

ACSR conductor-IEC 61089
CodeNominal AreaStrandingOverall DiameterWeightBreakign LoadElectrical Resistance @20oCurrent Rating*
ALSteelTotalALSteel
mm^2mm^2mm^2No.xmmNo.xmmmmKg/KmKNΩ/KmA
16162.6718.76/1.841/1.845.5264.66.081.793485
25254.1729.26/2.301/2.306.9100.99.131.1478112
40406.6746.76/2.911/2.918.73161.514.40.7174150
636310.573.56/3.661/3.6610.98254.421.630.4555198
10010016.71176/4.611/4.6113.83403.834.330.2869263
1251256.9413218/2.971/2.9714.85397.929.170.2304299
12512520.414526/2.477/1.9215.64503.945.690.231302
1601608.8916918/3.361/3.3616.8509.336.180.18347
16016026.118626/2.807/2.1817.74644.957.690.1805351
20020011.121118/3.761/3.7618.8636.744.220.144398
20020032.623326/3.137/2.4319.81806.270.130.1444402
25025024.627522/3.807/2.1121.53880.668.720.1154458
25025040.729126/3.507/2.7222.161007.787.670.1155461
31531521.833745/2.997/1.9923.911039.679.030.0917526
31531551.336626/3.937/3.0524.871269.7106.830.0917530
40040027.742845/3.367/2.2426.881320.198.360.0722607
40040051.945254/3.077/3.0727.631510.3123.040.0723610
45045031.148145/3.577/2.3828.561485.2107.470.0642651
45045058.350854/3.267/3.2629.341699.1138.420.0643655
50050034.653545/3.767/2.5130.091650.2119.410.0578693
50050064.856554/3.437/3.4330.871887.9153.80.0578697
56056038.759945/3.987/2.6531.831848.2133.740.0516741
560*56070.963154/3.6319/2.1832.682103.4172.590.0516745
63063043.667445/4.227/2.8133.752079.2150.450.0459794
630*63079.871054/3.8519/2.3134.652366.3191.770.0459798
71071049.175945/4.487/2.9935.852343.2169.560.0407851
710*71089.980054/4.0919/2.4536.792666.8216.120.0407856
800*80034.683572/3.767/2.5137.612480.2167.410.0361910
800*80066.786784/3.487/3.4838.282732.7205.330.0362912
800*80010190154/4.3419/2.6139.093004.9243.520.0362916
900*90038.993972/3.997/2.6639.92790.2188.330.0321972
900*9007597584/3.697/3.6940.593074.2226.50.0322974
1000*100043.2104372/4.217/2.8042.083100.3209.260.02891031
1120*112047.3116772/4.4519/1.7844.53464.9234.530.02581096
1120*112091.2121184/4.1219/2.4745.313811.5283.170.02581100
1250*1250102135284/4.3519/2.6147.854253.9316.040.02321165
1250*125052.8130372/4.7019/1.88473867.1261.750.02311163

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Condutor Parameter-Canadian Standards” style=”fancy” icon=”plus-circle”]

ACSR Condutor-Canadian Standards
Code nameTotal AreaStranding and diameterApproximate overall diameterLinear massRated tensile strengthMaximum D.C. Resistance at 20℃ Ω/kmCuttent Rating
AluminumSteelTotalAluminumSteelAluminumSteelTotal.
mm2mm2mm2mmmmmmkg/kmkg/kmkg/kmdaNA
wren8.88 1.11 10.1010 6/1.331/1.33 4.44 23.23)11.11 34.34 3083.33333 63
Warbler11.1111 1.11 12.1212 6/1.51/1.504.44 29.29)14.14 43.43 4203.33333 67
Turkey13.1313 2.22 15.1515 6/1.681/1.685.55 37.37)17.17 54.54 5242.22222 78
Swan21.2121 4.44 25.2525 6/2.121/2.12 6.66 58.58)27.27 85.85 8321.11111 105
Swante21.2121 5.55 26.2626 7/1.961/2.617.77 58.58)42.42 100.100 10531.11111 104
Swallow27.2727 4.44 31.3131 6/2.381/2.38 7.77 73.73)35.35 108.108 10211.11111 126
Sparrow34.3434 6.66 39.3939 6/2.67 1/2.678.88 92.92)44.44 136.136 12701.11111 139
Sparate34.3434 9.99 42.4242 7/2.471/3.30 8.88 92.92)67.67 159.159 16111.11111 138
Robin42.4242 7.77 49.4949 6/3.001/3.009.99 116.116)55.55 171.171 15851.11111 160
Raven53.5353 9.99 62.6262 6/3.371/3.37 10.1010 147.147)69.69 216.216 19321.11111 183
Quail67.6767 11.1111 79.7979 6/3.781/3.78 11.1111 185.185)88.88 273.273 23620.00000 210
Pigeon85.8585 14.1414 99.9999 6/4.251/4.25 13.1313 233.233)110.110 343.343 29410.00000 241
Penguin107.107107 18.1818 125.125125 6/4.771/4.7714.1414 294.294)139.139 433.433 37060.00000 276
Waxwing135.135135 7.77 143.143143 18/3.09 1/3.09 15.1515 373.373)58.58 431.431 30270.00000 319
Partridge 135.135135 22.2222 157.157157 26/2.57 7/2.00 16.1616 374.374)172.172 546.546 50290.00000 323
Ostrich152.152152 25.2525 177.177177 26/2.737/2.12 17.1717 421.421)193.193 614.614 56520.00000 346
Merlin170.170170 9.99 180.180180 18/3.471/3.4717.1717 470.470)74.74 544.544 38230.00000 364
Linnet170.170170 28.2828 198.198198 26/2.89 7/2.25 18.1818 472.472)217.217 689.689 62710.00000 371
Oriole 170.170170 40.4040 210.210210 30/2.697/2.69 19.1919 473.473)311.311 784.784 77450.00000 372
Chickadee201.201201 11. 16 213.213213 18/3.77 1/3.77 19.1919 555.555)87.87 642.642 43990.00000 403
Brant201.201201 26.2626 228.228228 24/3.277/2.1820.2020 558.558)204.204 762.762 64690.00000 405
Ibis201.201201 33.3333 234.234234 26/3.14 7/2.44 20.2020 558.558)256.256 814.814 72110.00000 403
Lark201.201201 47.4747 248.248248 30/2.92 7/2.92 20.2020 560.560)367.367 927.927 88690.00000 410
Pelican242.242242 13.1313 255.255255 18/4.12 1/4.14 21.2121 666.666)105.105 771.771 52160.00000 449
Flicker242.242242 31.3131 273.273273 24/3.587/2.3921.2121 670.670)245.245 915.915 76660.00000 454
Hawk242.242242 39.3939 281.281281 26/3.44 7/2.67 22.2222 670.670)308.308 978.978 86650.00000 455
Hen242.242242 56.5656 298.298298 30/3.20 7/3.20 22.2222 671.671)441.441 1112.1112 105340.00000 457
Osprey 282.282282 16.1616 298.298298 18/4.471/4.47 22.2222 777.777)122.122 899.899 60880.00000 492
Parakeet282.282282 37.3737 319.319319 24/3.877/2.5823.2323 781.781)286.286 1067.1067 88220.00000 492
Dove282.282282 46.4646 328.328328 26/3.72 7/2.89 24.2424 781.781)359.359 1140.1140 101030.00000 499
Eagle 282.282282 66.6666 348.348348 30/3.467/3.46 24.2424 783.783)515.515 1298.1298 133920.00000 500
Peacock 307.307307 40.4040 346.346346 24/4.037/2.69 24.2424 849.849)311.311 1160.1160 95880.00000 522
Squab307.307307 50.5050 357.357357 26/3.877/3.0125.2525 850.850)390.390 1240.1240 108410.00000 523
Wood duck 307.307307 72.7272 378.378378 30/3.16 7/3.6125.2525 851.851)560.560 1411.1411 128840.00000 523
Teal307.307307 70.7070 376.376376 30/3.6119/2.1625.2525 851.851)548.548 1399.1399 133590.00000 527
Kingbird322.322322 18.1818 340.340340 18/4.78 1/4.78 24.2424 889.889)139.139 1028.1028 69560.00000 530
Rook322.322322 42.4242 364.364364 24/4.147/2.7625.2525 893.893)326.326 1219.1219 100830.00000 537
Grosbeak322.322322 52.5252 375.375375 26/3.97 7/3.09 25.2525 893.893)409.409 1302.1302 111800.00000 538
Scoter322.322322 75.7575 394.394394 30/3.70 7/3.7026.2626 895.895)589.589 1484.1484 135440.00000 541
Egret322.322322 74.7474 396.396396 30/3.70 19/2.22 26.2626 894.894)576.576 1470.1470 140550.00000 542
Swift322.322322 9.99 331.331331 36/3.381/3.3824.2424 888.888)70.70 958.958 60520.00000 542
Flamingo338.338338 44.4444 382.382382 24/4.23 7/2.82 25.2525 936.936)342.342 1278.1278 105660.00000 552
Gannet338.338338 55.5555 393.393393 26/4.07 7/3.16 26.2626 936.936)429.429 1365.1365 117330.00000 618
Stilt363.363363 47.4747 410.410410 24/4.39 7/2.92 26.2626 1005.1005)367.367 1372.1372 113350.00000 577
Starling363.363363 59.5959 422.422422 26/4.217/3.2827.2727 1005.1005)461.461 1466.1466 125910.00000 578
Redwing363.363363 83.8383 445.445445 30/3.92 19/2.35 27.2727 1006.1006)647.647 1653.1653 153940.00000 581
Tern403.403403 28.2828 431.431431 45/3.38 7/2.25 27.2727 1116.1116)217.217 1333.1333 97370.00000 610
Condor403.403403 52.5252 455.455455 54/3.08 7/3.0828.2828 1116.1116)408.408 1524.1524 124450.00000 614
Cuckoo403.403403 52.5252 455.455455 24/4.627/3.0828.2828)1116.1116)408.408 1522.1522 123940.00000 614
Drake402.8466.6666 468.468468 26/4.44 7/3.45 28.2828)1116.1116)5181628139920.07191614
Coot402.8411.1111 414.414414 36/3.77 1/3.77 26.2626)1110.1110)88119874850.07156614
Mallard403.403403 92.9292 485.485485 30/4.1419/2.4829.2929)1119.1119)7191838171180.07208618
Ruddy456.456456 32.3232 488.488488 45/3.59 7/2.40 29.2929)1263.1263)2471510109310.06351656
Canary456.456456 59.5959 515.515515 54/3.28 7/3.2830.3030)1263.1263)4611724140950.06351660
Rail483.483483 33.3333 517.517517 45/3.707/2.4730.3030)1339.1339)2621601115850.05992679
Catbird483.483483 13.1313 496. 84 36/4.14 1/4.14 29.2929)1333.1333)105143887660.00000 679
Cardinal483.483483 63.6363 546. 07 54/3.38 7/3.3830.3030)1339.1339)4901829149360.00000 681
Ortolan524.524524 36.3636 559. 8745/3.857/2.5731.3131)1451.1451)2831734123100.00000 712
Tanager524.524524 15.1515 538.538538 36/4.30 1/4.3030.3030)1443.1443)113155694930.00000 710
Curlew524.524524 68.6868 592.592592 54/3.52 7/3.52 32.3232)1451.1451)5301981161800.00000 715
Bluejay564.564564 39.3939 603.603603 45/4.007/2.6632.3232)1563.1563)3851868132630.00000 743
Finch.564.564564 72.7272 635.635635 54/3.65 19/2.1933.3333)1570.1570)5802130174410.00000 746
Bunting604.604604 42.4242 646.646646 48/4.147/2.7633.3333)1674.1674)3272001141790.00000 772
Grackle604.604604 77.7777 681.681681 54/3.7719/2.2734.3434)1682.1682)6002282186780.00000 773
Bittern645.645645 45.4545 689.689689 45/4.27 7/2.8534.3434)1785.1785)3492134151480.00000 802
Pheasant645.645645 82.8282 726.726726 54/3.90 19/2.3435.3535)1795.1795)6382433194000.00000 807
Skylark645.645645 18.1818 662.662662 36/4.781/4.7833.3333)1777.1777)1401917115850.00000 810
Dipper685.685685 47.4747 732.732732 45/4.40 7/2.9235.3535)1898.1898)3682266160700.00000 831
Martin685.685685 89.8989 772.772772 54/4.0219/2.41 36.3636)1906.1906)6792585206050.00000 835
Bobolink725.725725 50.5050 775.775775 45/4.537/3.0236.3636)2009.2009)3932402170710.00000 859
Plover725.725725 92.9292 817.817817 54/4.14 19/2.4837.3737)2019.2019)7192738218240.00000 862
Nuthatch765.765765 53.5353 818.818818 45/4.65 7/3.1037.3737)2120.2120)4142534177890.00000 886
Parrot765.765765 97.9797 862.862862 54/4.2519/2.5538.3838)2131.2131)7592890230200.00000 890
Lapwing806.806806 55.5555 861.861861 45/4.77 7/3.18 38.3838)2232.2232)4352667187020.00000 911
Falcon806.806806 102.102102 908.908908 54/4.3619/2.6239.3939)2243.2243)7993042242550.00000 917
Chukar903.903903 74.7474 903.903903 84/3.7019/2.2241.4141)2511.2511)5753086226850.00000 975
BlueBird1092.10921092 89.8989 1092.10921092 84/4.07 19/2.44 45.4545)3036.3036)6973733268300.00000 1180
Kiwi1100.11001100 48.4848 1099.10991099 72/4.41 7/2.94 44.4444)3057.3057)3703427221600.00000 1180
Thrasher1171.11711171 65.6565 1171.11711171 76/4.4319/2.0946.4646)3256.3256)5113767253000.00000 1200
Grouse41.4141 14.1414 55.5555 8/2.54 1/4.249.99)112.112)11022223601.11111 155
Petrel52.5252 30.3030 82.8282 12/2.34 7/2.34 12.1212)143.143)23537847151.11111 187
Minorca56.5656 33.3333 89.8989 12/2.447/2.4412.1212)156.156)25641251251.11111 197
Leghorn68.6868 40.4040 108.108108 12/2.69 7/2.6913.1313)189.189)31150061700.00000 221
Guinea81.8181 47.4747 128.128128 12/2.92 7/2.9215.1515)223.223)36759072550.00000 244
Dotterel89.8989 52.5252 142.142142 12/3.087/3.0815.1515)248.248)40965778500.00000 260
Dorking97.9797 56.5656 153.153153 12/3.20 7/3.2016.1616)268.268)44170984800.00000 272
Brahma103.103103 92.9292 195.195195 16/2.86 19/2.48 18.1818)285.285)7221007128800.00000 288
Auk103.103103 92.9292 195.195195 8/4.057/2.2515.1515)283.283)217.350087400.00000 276
Cochin107.107107 62.6262 170.170170 12/3.377/3.3717.1717)297.297)48876593900.00000 287

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Conductor Parameter- DIN 48204 Standard” style=”fancy” icon=”plus-circle”]

ACSR Technical characteristics / DIN 48204
AreaStanding and wire diameterOverall diameterNominal breaking loadMaximum resistance at 20°C Current Rating
Nominal.ActualTotal.
Al/Steel--AlSteelTotalAluminum Steel
mm2mm2mm2mmmmmmkg/kmdaNΩ/kmA
16/2.515.1515 2.22 18.1818 6/1.801/1.805.55 625952.22222 105
25/4.0 24.2424 4.44 28.2828 6/2.251/2.57.77 979201.11111 140
35/6.034.3434 6.66 40.4040 6/2.701/2.708.88 14012651.11111 170
44/32.044.4444 32.3232 76.7676 14/2.007/2.4011.1111 37245001.11111 220
50/8.048.4848 8.88 56.5656 6/3.201/3.2010.1010 19617101.11111 210
50/3051.5151 30.3030 81.8181 12/2.33 7/2.3312.1212 37843801.11111 223
70/1270.7070 11.1111 81.8181 26/1.857/1.4412.1212 28426800.00000 290
95/1594.9494 15.1515 110.110110 26/2.157/1.6714.1414 38335750.00000 350
95/5596.9696 56.5656 153.153153 12/3.207/3.2016.1616 71279350.00000 352
105/75106.106106 76.7676 182.182182 14/3.109/2.2518.1818 891108450.00000 385
120/20121.121121 20.2020 141.141141 26/2.447/1.9016.1616 49445650.00000 410
120/70122.122122 71.7171 193.193193 12/3.607/3.6018.1818 90100000.00000 410
125/30 128.128128 30.3030 158.158158 30/2.33 7/2.33 16.1616 59157600.00000 425
150/25149.149149 24.2424 173.173173 26/2.707/2.10 17.1717 60555250.00000 470
170/40172.172172 40.4040 212.212212 30/2.707/2.7019.1919 79476750.00000 520
185/30184.184184 30.3030 214.214214 26/3.007/2.3319.1919 74666200.00000 535
210/35209.209209 34.3434 243.243243 26/3.207/2.4920.2020 85074900.00000 590
210/50212.212212 50.5050 262.262262 30/3.007/3.0021.2121 98193900.00000 610
230/30231.231231 30.3030 261.261261 24/3.507/2.3321.2121 87773100.00000 630
240/40243.243243 40.4040 282.282282 26/3.457/2.6822.2222 98786400.00000 645
265/35264.264264 34.3434 298.298298 24/3.747/2.4922.2222 100283050.00000 680
300/50304.304304 50.5050 354.354354 26/3.86 7/3.0024.2424 1236107000.00000 740
305/40305.305305 40.4040 344.344344 54/2.687/2.6824.2424 116099400.00000 740
340/30339.339339 30.3030 369.369369 48/3.00 7/2.3325.2525 118092900.00000 790
380/50382.382382 50.5050 432.432432 54/3.007/3.0027.2727 1453123100.00000 840
385/35386.386386 34.3434 420.420420 48/3.207/2.4927.2727 1344104800.00000 850
435/55434.434434 59.5959 491.491491 54/3.207/3.2029.2929 1653136450.00000 900
450/40449.449449 40.4040 488.488488 48/3.457/2.6829.2929 1561120750.00000 920
490/65490.490490 64.6464 554.554554 54/3.407/3.4031.3131 1866153100.00000 960
495/35494.494494 34.3434 528.528528 45/3.747/2.4930.3030 1646121800.00000 968
510/45510.510510 45.4545 556.556556 48/3.687/2.8731.3131 1778136650.00000 980
550/70550.550550 71.7171 621.621621 54/3.607/3.6032.3232 2092170600.00000 1020
560/50562.562562 50.5050 611.611611 48/3.867/3.0032.3232 1954148950.00000 1040
570/40566.566566 40.4040 610.610610 45/4.007/2.6832.3232 1888139000.00000 1040
650/45698.698698 45.4545 653.653653 45/4.307/2.8734.3434 2163155520.00000 1280
680/85679.679679 86.8686 765.765765 54/4.0019/2.4036.3636 2570210400.00000 1150
1045/451046.10461046 45.4545 1091.10911091 72/4.307/2.8743.4343 3249217870.00000 1570

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”ACSR Conductor- GB1179-83 Standard” style=”fancy” icon=”plus-circle”]

ACSR Technical characteristics GB1179-83 Standard
Nominal Area Aluminum/Steel mm2Stranding No./Dia. No./mmCalculated Area mm2Overall Diameter mmD.C. Resistance Ω/kmCalculated Breaking Load NCalculated Weight kg/kmContinuous Carrying Capacity(A)
AluminumSteelAluminumSteelTotal70 ℃80 ℃90 ℃
10/26/1.501/1.5011.1111 2.22 12.1212 4.44 3.33333 412043.43 667887
16/36/1.851/1.8516.1616 3.33 19.1919 6.66 2.22222 613065.65 85100113
25/46/2.321/2.3225.2525 4.44 30.3030 7.77 1.11111 9290103.103 111131149
35/66/2.721/2.7235.3535 6.66 41.4141 8.88 1.11111 12630141.141 134158180
50/86/3.201/3. 2048.4848 8.88 56.5656 10.1010 1.11111 16870195.195 161191218
50/3012/2.327/2.3251.5151 30.3030 80.8080 12.1212 1.11111 42620372.372 166195218
70/106/3.801/3.8068.6868 11.1111 79.7979 11.1111 0.00000 23390275.275 194232266
70/4012/2.727/2.7270.7070 41.4141 110.110110 14.1414 0.00000 58300511.511 196230257
95/1526/2.157/1.6794.9494 15.1515 110.110110 14.1414 0.00000 35000381.381 252306351
95/207/4.167/1.8595.9595 19.1919 114.114114 14.1414 0.00000 37200409.409 253277319
95/5512/3.207/3.2097.9797 56.5656 153.153153 16.1616 0.00000 78110708.708 250270301
120/718/2.901/2.90119.119119 7.77 126.126126 14.1414 0.00000 27570379.379 287350401
120/20 26/2.387/1.85116.116116 19.1919 134.134134 15.1515 0.00000 41000467.467 285348399
120/257/4.727/2.10122.122122 24.2424 150.150150 16.1616 0.00000 47880527.527 265315385
120/7012/3.607/3.60122.122122 71.7171 193.193193 18.1818 0.00000 98370896.896 258301335
150/818/3.201/3.20145.145145 8.88 153.153153 16.1616 0.00000 32860461.461 323395454
150/2024/2.787/1.85146.146146 19.1919 164.164164 17.1717 0.00000 46630549.549 326400461
150/25 26/2.707/2.10149.149149 24.2424 173.173173 17.1717 0.00000 54110601.601 331407469
150/3530/2.507/2.50147.147147 34.3434 182.182182 18.1818 0.00000 65020676.676 331407469
18/1018/3.601/3.60183.183183 10.1010 193.193193 18.1818 0.00000 40880584.584 372458528
185/2524/3.157/2.10187.187187 24.2424 211.211211 19.1919 0.00000 59420706.706 379468540
185/30 26/2.987/2.32181.181181 30.3030 211.211211 19.1919 0.00000 64320733.733 373480531
185/4530/2.807/2.80185.185185 43.4343 228.228228 20.2020 0.00000 80190848.848 379489541
210/1018/3.801/3.80204.204204 11.1111 215.215215 19.1919 0.00000 45140651.651 397490565
210/25 24/3.337/2.22209.209209 27.2727 236.236236 20.2020 0.00000 65990789.789 405501579
210/3526/3.227/2.50212.212212 34.3434 246.246246 20.2020 0.00000 74250854.854 409507586
210/5030/2 987/2.98209.209209 49.4949 258.258258 21.2121 0.00000 90830961.961 409507586
240/30 24/3.607/2.40244.244244 32.3232 276.276276 22.2222 0.00000 75620922.922 445552639
240/40 26/3.427/2.66239.239239 39.3939 278.278278 22.2222 0.00000 83370964.964 440546633
240/5530/3.207/3.20241.241241 56.5656 298.298298 22.2222 0.00000 1021001108.1108 445554641
300/1542/3.007/1.67297.297297 15.1515 312.312312 23.2323 0.00000 68060940.940 495615711
300/20 45/2.937/1.95303.303303 21.2121 324.324324 23.2323 0.00000 756501002.1002 502624722
300/2548/2.857/2.22306.306306 27.2727 333.333333 24.2424 0.00000 834101058.1058 505628726
300/4024/3.997/2.66300.300300 39.3939 339.339339 24.2424 0.00000 922201133.1133 503628728
300/5026/3.837/2.98300.300300 49.4949 348.348348 24.2424 0.00000 1034001210.1210 504629730
300/7030/3.607/3.60305.305305 71.7171 377.377377 25.2525 0.00000 1280001402.1402 512641745
400/2042/3.517/1.95406.406406 21.2121 427.427427 27.2727 0.00000 888501286.1286 595746884
400/25 45/3.337/2.22392.392392 27.2727 419.419419 27.2727 0.00000 959401295.1295 584730845
400/3548/3.227/2.50391.391391 34.3434 425.425425 27.2727 0.00000 1039001349.1349 583729844
400/5054/3.077/3.07400.400400 52.5252 452.452452 28.2828 0.00000 1234001511.1511 592741857
400/65 26/4.427/3.44399.399399 65.6565 464.464464 28.2828 0.00000 1352001611.1611 597752876
400/9530/4.1619/2.50408.408408 93.9393 501.501501 29.2929 0.00000 1713001860.1860 608767895
500/35 45/3.757/2.50497.497497 34.3434 531.531531 30.3030 0.00000 1195001642.1642 670842977
500/4548/3.607/2.80489.489489 43.4343 532.532532 30.3030 0.00000 1281001688.1688 664834967
500/6554/3.447/3.44502.502502 65.6565 567.567567 31.3131 0.00000 1540001897.1897 667850983
630/4545/4.27/2.80623.623623 43.4343 667.667667 34.3434 0.00000 1487002060.2060 7639641120
630/55 48/4.127/3.20640.640640 56.5656 696.696696 34.3434 0.00000 1644002209.2209 7759791136
630/8054/3.8719/2.32635.635635 80.8080 716.716716 35.3535 0.00000 1929002388.2388 7749771131
720/5045/4.5336.240.0249170600239783010401220
800/5545/4.807/3.20814.814814 56.5656 871.871871 38.3838 0.00000 1915002690.2690 88711261310
800/70 48/4.637/3.60808.808808 71.7171 879.879879 39.3939 0.00000 2070002791.2791 88411211301
800/10054/4.3319/2.60795.795795 101.101101 896.896896 39.3939 0.00000 2411002991.2991 87811131288
1400/120 84/4.60 50.80.020723550004781127015801805
1400/135 88/4.50 510.020673753004927127215831808

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/column]
[/row]

HUADONG CABLE GROUP SINCE 1999

Professional Cables and Wires Manufacturer in China

We can design cables according to your requirement

huadong-factory-01 huadong-factory-02 huadong-factory-03 huadong-factory-04 huadong-factory-05 huadong-factory-06

Verified Manufacturer

huadong-standards huadong-certificates

    Please feel free to leave your requirement, We will reply you in 12 hours.

    E-mail: sales@huadongtest.hdlightningprotection.com

    Your Name

    Your Email *

    Your Phone Number *

    Your Country

    Your Requirement *
