AAAC Conductor-All Aluminum Alloy Conductor

Professional AAAC condcutor cable manufacturer from China, Meet your kinds of requirement AAAC conductor cable With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size.

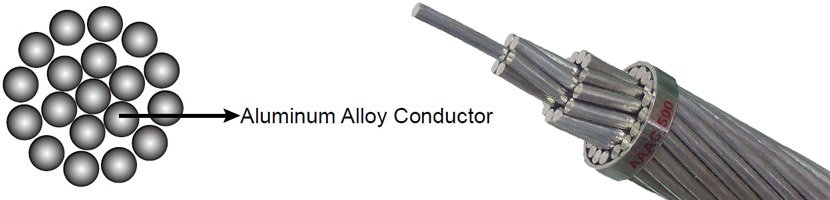

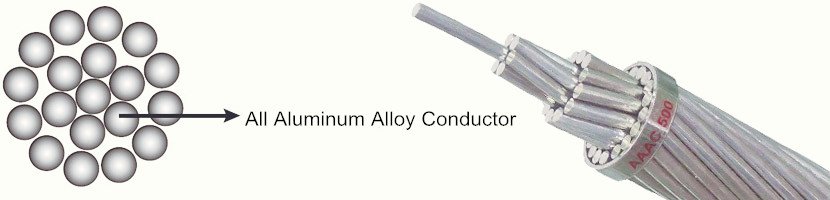

Character： . All Aluminum-Alloy Conductor; . Bare.

Application: Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy 6201-T81 gives AAAC higher resistance to corrosion than ACSR.

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

Code Words-ASTM Standard:

Code Words-BS Standard:

[row class=prodetails]

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

AAAC Conductor Parameter List:

[column lg=”12″ md=”12″ sm=”12″ xs=”12″ ]

[su_spoiler title=”AAAC Conductor Parameter-ASTM B-399B 399M” style=”fancy” icon=”plus-circle”]

AAAC conductor-ASTM B 399B 399M

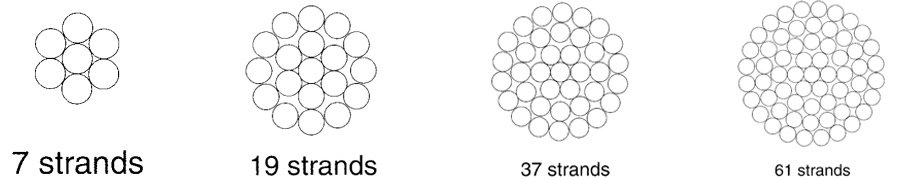

Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
AWG&MCM	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
6	13.2	7/1.55	4.65	36.2	4.18	2.5361	69
4	21.1	7/1.96	5.88	57.9	6.69	1.586	93
2	33.5	7/2.47	7.41	92	10.6	0.9987	123
0	53.5	7/3.12	9.36	146.8	17	0.62592	165
2/0	67.3	7/3.50	10.5	184.8	20.4	0.49738	190
3/0	84.9	7/3.93	11.79	233	25.7	0.3945	219
4/0	107	7/4.42	13.26	294.7	32.5	0.31188	253
250	126	19/2.91	14.55	346.7	38.8	0.26509	280
300	152	19/3.19	15.95	416.7	46.6	0.22059	313
350	178	19/3.45	17.25	487.3	52	0.1886	345
400	203	19/3.69	18.45	557.5	59.5	0.16486	375
450	228	19/3.91	19.55	626	66.8	0.14683	402
500	253	19/4.12	20.6	695	74.2	0.13224	429
550	279	37/3.10	21.7	766.2	83.9	0.11995	455
600	303	37/3.23	22.61	831.9	91	0.11049	478
650	330	37/3.37	23.59	905.5	94.9	0.1015	504
700	354	37/3.49	24.43	971.2	101	0.09464	525
750	381	37/3.62	25.34	1045	109	0.08796	549
800	404	37/3.73	26.11	1109	116	0.08285	569
900	456	37/3.96	27.72	1250	131	0.07351	612
1000	508	37/4.18	29.26	1393	146	0.06597	653
1250	631	61/3.63	32.67	1732	179	0.05306	743
1500	759	61/3.98	35.82	2082	215	0.04414	827
1750	886	61/4.30	38.7	2431	251	0.03781	904

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”AAAC Conductor Parameter-BS 3242″ style=”fancy” icon=”plus-circle”]

AAAC conductor-BS 3242
Code	AL Nominal Area	Cu Nominal Area Equivalent	Total Area	Stranding	Overall Diameter	Weight
	mm^2	mm^2	mm^2	No.Ω/mm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	132

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”AAAC Conductor Parameter-BS EN 50182″ style=”fancy” icon=”plus-circle”]

AAAC conductor-BS EN 50182
Code	Stranding	Nominal Area	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	No.xmm	mm^2	mm	kg/km	KN	Ω/Km	A
Box	7/1.85	18.8	5.55	51.4	5.55	1.748	87
Acacia	7/2.08	23.8	6.24	64.9	7.02	1.3828	101
Almond	7/2.34	30.1	7.02	82.2	8.88	1.0926	116
Cedar	7/2.54	35.5	7.62	96.8	10.46	0.9273	129
Deodar	7/2.77	42.2	8.31	115.2	12.44	0.7797	143
Fir	7/2.95	47.8	8.85	130.6	14.11	0.6875	155
Hazel	7/3.30	59.9	9.9	163.4	17.66	0.5494	178
Pine	7/3.61	71.6	10.83	195.6	21.14	0.4591	199
Holly	7/3.91	84.1	11.73	229.5	24.79	0.3913	219
Willow	7/4.04	89.7	12.12	245	26.47	0.3665	228
Oak	7/4.65	118.9	13.95	324.5	35.07	0.2767	272
Mulberry	19/3.18	150.9	15.9	414.3	44.52	0.2192	314
Ash	19/3.48	180.7	17.4	496.1	53.31	0.183	351
Elm	19/3.76	211	18.8	579.2	62.24	0.1568	386
Poplar	37/2.87	239.4	20.09	659.4	70.61	0.1387	416
Sycamore	37/3.23	303.2	22.61	835.2	89.4	0.1095	480
Upas	37/3.53	362.1	24.71	997.5	106.82	0.0917	535
Yew	37/4.06	479	28.42	1319.6	141.31	0.0693	633
Totara	37/4.14	498.1	28.98	1372.1	146.93	0.0666	648
Rubus	61/3.50	586.9	31.5	1622	173.13	0.0567	714
Sorbus	61/3.71	659.4	33.39	1822.5	194.53	0.0505	764
Araucaria	61/4.14	821.1	37.26	2269.4	242.24	0.0406	868
Redwood	61/4.56	996.2	41.04	2753.2	293.88	0.0334	970

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”AAAC Conductor Parameter-DIN 48201 Part 6″ style=”fancy” icon=”plus-circle”]

AAAC conductor-DIN 48201 Part 6
Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	4.44	2.0742	78
25	24.25	7/2.10	6.3	66	6.77	1.3593	102
35	34.36	7/2.50	7.5	94	9.6	0.9591	126
50	49.48	7/3.00	9	135	13.82	0.666	158
50	48.35	19/1.80	9	133	13.5	0.6849	156
70	65.81	19/2.10	10.5	181	18.38	0.5032	189
95	93.27	19/2.50	12.5	256	26.05	0.3551	234
120	116.99	19/2.80	14	322	32.68	0.2831	269
150	147.11	37/2.25	15.8	406	41.09	0.2256	309
185	181.62	37/2.50	17.5	500	50.73	0.1828	352
240	242.54	61/2.25	20.3	670	67.74	0.1371	420
300	299.43	61/2.50	22.5	827	83.63	0.111	477
400	400.14	61/2.89	26	1104	111.76	0.0831	568
500	499.83	61/3.23	29.1	1379	139.6	0.0665	649
625*	626.2	91/2.96	32.6	1732	174.9	0.0531	742
800*	802.09	91/3.35	36.9	2218	224.02	0.0415	857
1000*	999.71	91/3.74	41.1	2767	279.22	0.0333	971

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”AAAC Conductor Parameter-IEC 61089″ style=”fancy” icon=”plus-circle”]

AAAC conductor-IEC 61089
Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	18.4	18.4	5.49	50.4	5.43	1.7896	86
25	28.8	28.8	6.87	78.7	8.49	1.1453	113
40	46	46	8.67	125.9	13.58	0.7158	151
63	72.5	72.5	10.89	198.3	21.39	0.4545	200
100	115	115	13.9	316.3	33.95	0.2877	266
125	144	144	15.5	395.4	42.44	0.2302	305
160	184	184	17.55	506.1	54.32	0.1798	355
200	230	230	19.65	632.7	67.91	0.1439	407
250	288	288	21.95	790.8	84.88	0.1151	466
315	363	363	24.71	998.9	106.95	0.0916	535
400	460	460	27.86	1268.4	135.81	0.0721	618
450	518	518	29.54	1426.9	152.79	0.0641	663
500	575	575	31.15	1585.5	169.76	0.0577	706
560	645	645	33.03	1778.4	190.14	0.0516	755
630	725	725	35.01	2000.7	213.9	0.0458	809
710	817	817	37.17	2254.8	241.07	0.0407	866
800	921	921	39.42	2540.6	271.62	0.0361	928
900*	1036	1036	41.91	2861.1	305.58	0.0321	992
1000*	1151	1151	44.11	3179	339.53	0.0289	1051
1120*	1289	1289	46.75	3560.5	380.27	0.0258	1118
1250*	1439	1439	49.39	3973.7	424.41	0.0231	1185

Get a free quote by e-mail: sales@huadongtest.hdlightningprotection.com

[popup_close tag=”p” classes=”button-center”]

[/popup_close]

[/su_spoiler]

[su_spoiler title=”AAAC Conductor Parameter- China GB 9329 Standard” style=”fancy” icon=”plus-circle”]

AAAC Technical characteristics of GB9329
Nominal Area	Stranding Number Diameter	Calculated Area	Overall Diameter	D,C. Resistance	Calculated Breaking Load	Calculated Weight	Continuous Carrying Capacity(A)
mm2	No. mm	mm2	mm	Ω/km	N	kg/km	70 ℃	80 ℃	90 ℃
35	7/2.52	35.3535	8.88	1.11111	10.1010	96.96
50	7/3.02	50.5050	9.99	1.11111	14.1414	137.137	159	191	218
70	7/3.57	70.7070	11.1111	0.00000	20.2020	192.192	195	235	369
95	7/4.16	95.9595	12.1212	0.00000	27.2727	260.260	234	285	328
120	19/2.84	120.120120	14.1414	0.00000	34.3434	331.331	270	330	379
150	19/3.17	150.150150	16.1616	0.00000	42.4242	412.412	308	378	436
185	19/3.52	185.185185	18.1818	0.00000	52.5252	508.508	350	431	497
210	19/3.75	210.210210	19.1919	0.00000	59.5959	577.577	377	466	539
240	19/4.01	240.240240	20.2020	0.00000	67.6767	660.660	409	507	587
300	37/3.21	299.299299	22.2222	0.00000	84.8484	825.825	466	581	675
400	37/3.71	400.400400	26.2626	0.00000	112.112112	1102.1102	553	695	810
500	37/4.15	500.500500	29.2929	0.00000	140.140140	1379.1379	631	798	933
630	61/3.63	631.631631	33.3333	0.00000	176.176176	1742.1742	721	919	1078
800	61/4.09	801.801801	37.3737	0.00000	224.224224	2212.2212	826	1061	1249
1000	61/4.57	1001.10011001	41.4141	0.00000	279.279279	2761.2761	933	1209	1429
