Self-luminous mining cables

Self-luminous mining cables,These cables use a special electroluminescent string embedded within the cable construction, providing low power consumption and high visibility. They are designed to be robust and resistant to harsh mining conditions, including abrasion, cold temperatures, and impact.

• Construction:
• Voltage Rating: 1.9/3.3kV and 3.8/6.6kV
• Visibility: The primary feature is the self-luminous electroluminescent string that makes the cable highly visible in low-light conditions.
  Conductor: Tinned copper, finely stranded (Class 5).
  Insulation: Special cross-linked EPR.
  Electrical Field Control: Inner and outer layers of semi-conductive rubber compound.
  Core Identification: Black for main and earth cores, blue for pilot core.
  Core Arrangement: Three main cores, split earth and pilot, laid up around a semiconductive central filler with aramid yarns, with the electroluminescent string in the interstices.
  Outer Sheath: German-made special PUR compound, resistant to abrasion, tear, and cold temperatures down to -50°C.
  Outer Sheath Color: Light orange/Transparent.
  Mechanical Properties: Resistance to Impac; Abrasion Resistance; Flexibility
  Standards: Based on DIN VDE 0250-813.
  Typical Applications: Power supply for large mobile mining equipment in challenging environments.

• Get a quote by email: supplier@huadongcablegroup.com

Obtener Presupuesto

HighVision cable-Reflective and Fluorescent Compound Mining Cable

High Visibility cable intended to increase the nighttime visibility of trailing cables used to supply power to items of large mining machinery with two separate and complementary solutions

• Construction:
• 1.Phase core;2.Earth core; 3.Central support; 4.Ground check core; 5.Inner sheath; 6.Antitorsional protection; 7.Reflective outer sheath; 8.Phosphorescent stripes
  Features:
  —PHASE CORES SECTION: 3X35mm²; 3X50mm²; 3X70mm²; 3x150mm²
  —EARTH CORES SECTION: 2X25/2mm²; 2X25/2mm²; 2X35/2mm²; 2X70/2mm²
  —GROUND CHECK CORE: 1X16 mm²
  —CONDUCTOR: Annealed flexible copper (Cl.5)
  —CONDUCTOR SCREEN: Semiconductor layer
  —INSULATION: EPR; HEPR
  —INSULATION SCREEN: Semiconductor layer strippable
  —CENTRAL SUPPORT: Aramidic yarns
  —INNER SHEATH/ OUTER SHEATH /PHOSPHORESCENT STRIPES: compound (for low temperature)

• Get a quote by email: supplier@huadongcablegroup.com

Obtener Presupuesto

REFLECTIVE MINING CABLES  TPU transparent with orange/silver reflective tape

Connection for portable electrical equipment and machinery, including those used in hazardous areas, for reeling / unreeling applications.

TYPES: SHD-GC 2/0 AWG 2 kV; TYPE 61A FLEXIBLE 640/1100 V ; TYPE 66, 66ECC 3.8/6.6 kV; TYPE 611, 611ECC 6.35/11 kV

• Construction:
• Types: SHD-GC 2/0 AWG 2 kV
• Conductors: Annealed flexible stranded tin coated copper
  Insulation : Ethylene-propylene rubber (EPR)
  Insulation shield : None-conducting bedding tape +Composite tinned copper/polyamide braid.
  Ground check : Yellow polypropylene – insulated tinned copper conductor
  Assembly : Three power, the ground check, two non-insulated grounding cabled together to form a round cable core
  Outer jacket : Extra heavy duty, integral-filled , TPU jacket
  Colour of outer jacket: Transparent with orange/silver reflective tape under TPU jacket

• Get a quote by email: supplier@huadongcablegroup.com

Obtener PresupuestoType 61A Mining Cable

• Construction:
• Voltage Rating: 640/1100V
  Conductor: Class 5 flexible stranded tinned annealed Copper.
  Insulation: EPR (Ethylene Propylene Rubber) thermosetting compound
  Braid: Nylon /Tinned copper wires.
  Pilot Core: Lay,Three tinned copper/nylon braid screened power cores and one unscreened pilot core laid up in the right hand lay around rubber (RD1) filler centre.
  Inner Sheath: CR (Polychloroprene Rubber).
  Reinforcement braid: Open nylon braid – minimum 16 strings.
  Outer Sheath: TPU (Thermoplastic Polyurethane).
  Sheath Colour: Black or Transparent with orange silver reflective tape under.
• STANDARDS: SANS 1520-1, SANS 1411-1, SANS 1411-3, ICEA S-75-381 Tab. 3-3

• Get a quote by email: supplier@huadongcablegroup.com

Obtener Presupuesto

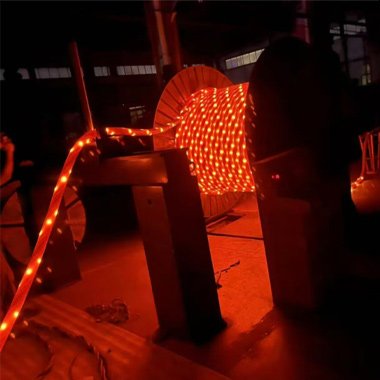

SHD-GC Mining cable with self sufficient LEDS for visual control and transparent TPU JACKET

• Construction characteristics
• 1.- Flexible Annealed tinned Copper Conductors.
  2.- Extruded Conductor Shielding.
  3.- EPR (Ethylene-Propylene Rubber) insulation, natural color
  4.- Extruded Insulation Shielding.
  5.- Combination Annealed Tinned Copper & Colored Textile
  Braid Shield over individual Phase Conductors.
  6.- Flexible Annealed tinned Plain Bare Copper Conductor.
  7.- Yellow (XLP) Cross linked Polyethylene Insulated Ground Check Conductor
  8.- Stranded Annealed Uninsulated tinned copper
  9.- To unify the Ground between the braid shield of the Phases conductors and the LEDs devices is applied an annealed tinned
  copper braid shield
  10.- Self-Sufficient LEDs as visual control device
  11.- To conform internal circular way, is applied PVC flexible and Transparent.
  12.- Mylar Tape
  13.- Overall transparent TPU jacket (Thermoplastic Polyurethane)
