Huadong cable manufacture and supplies marine cables are meticulously created and compliant with IEC 60092, JIS C3410 standards and approved by ABS, BV, RINA, DNV-GL, LR, NK certificates, etc. Guarantee for higher efficiency and protection.

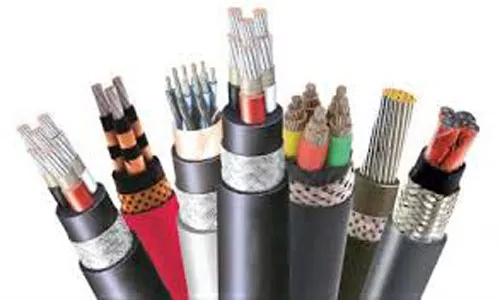

Marine cable also called shipboard cable or ship cable is a general circuit marine wiring. It is used for data transfer, electrical, power, control purposes, critical instrumentation signals, etc. This cable is specially created to withstand the generally hostile sea environments such as cold, humidity, saltwater corrosion, oil, vibration, and more. It is a great choice for the marine environment since they are halogen-free, low smoke, flame retardant, and has fire-resistant features. High and very low temperatures can be handled by marine cable.
JIS C 3410-1999 cable is Japanese industrial standard, popular used in Southeast Asia Countries like Singapore, Indonesia, Malaysia, Thailand, Vietnam, etc.
- Voltage: 0.6/1kV , 2kV, 5kV, 8kV, 15kV
- Cores: 0.6/1kV or 2kV:1-5 cores; 5kV, 8kV, 15kV: 3 core
- Conductor: flexible stranded tinned annealed copper wire
- Insulation: XLPO/ EPR(100%; 133% Insulation levels)
- Armored: copper wire braid (Armoring depends on customer needs)
- Jacket/Sheath: NBR(Neoprene Type N)
- Standards: IEC 60092-376,IEC 60092-350,IEC 60331; IEC 60332-3-22, IEC 60754, IEC 61034
- Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.
Custom Especificación by email: supplier@huadongcablegroup.com
- Conductor: Tinned Copper (Class 5)
- Insulation: Flame Retardant Polyolefin
- Inner Sheath: Chemical And Sunlight Resistant Thermosetting Compound
- Armor(Optional): Tinned Copper Basket Weave Wire
- Sheath(Optional): Chemical And Sunlight Resistant Thermosetting Compound
- Application: Designed and Constructed for the Demanding Environments of Offshore Drilling and Petroleum Facilities Located Throughout the World
- Features: Super Flexible,Higher Insulation Resistance,Excellent Moisture Resistance,Flame Retardant
Custom Especificación by email: supplier@huadongcablegroup.com
- Voltage: 2kV
- Conductor: tinned copper class 5
- Cores: 3+3
- Size: 3G x 4~18AWG
- Insulation: XLPO
- Ground Conductor: Tinned Copper wire
- Overall Braid shield: tinned copper wire
- Armoured: bronze wire braid
- Jacket/Sheath: NBR(Neoprene Type N)
- Features: Resistant Oil, abrasion, moisture, and sunlight.
Custom Especificación by email: supplier@huadongcablegroup.com
- Voltage: 0.6/1kV
- Size: 14~18AWG
- Pairs: 2~24 Pairs or
- Conductor: flexible stranded tinned annealed copper wire
- Insulation: XLPO
- Individual shield: AL/PS Tape W/Tinned Copper drain wire
- Overall shield: AL/PS Tape W/Tinned Copper drain wire
- Outer Sheath: NBR(Neoprene Type N)
- Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.
- Application: Designed for the demanding environments of offshore drilling and petroleum facilities
Custom Especificación by email: supplier@huadongcablegroup.com
- Voltage: 0.6/1kV
- Size: 14~18AWG
- Pairs: 1~24 Pairs or
- Conductor: Tinned copper class 5
- Pairs: tinned drain wire and polyester-backed aluminum foil tap
- Insulation: Flame retardant polyolefin
- Individual shield: AL/PS Tape W/Tinned Copper drain wire
- Armored: Tinned copper basket weave wire
- Outer Sheath: thermosetting compound
- Application: Designed for the demanding environments of offshore drilling and petroleum facilities
Custom Especificación by email: supplier@huadongcablegroup.com
- Voltage: 0.6/1kV
- Conductor: Flexible tinned copper wire Class 5
- Cores: 2~60 cores
- Size: 16~18AWG
- Insulation: XLPO
- Shield: AL/PS Tape W/Tinned Copper drain wire
- Jacket/Sheath: NBR(Neoprene Type N)
- Features: Resistant Oil, abrasion, moisture, and sunlight.
Custom Especificación by email: supplier@huadongcablegroup.com
Trusted Manufacturer
Based on high-quality products, a good reputation, and excellent service, we sincerely hope to have mutually beneficial cooperation and create a splendid future with domestic and foreign merchants, while developing and creating a splendid future together.
Our Clients
We are professional cable manufacturers. Thanks to the excellent quality of our cables and continuous product innovation, we export them to over 130 countries worldwide and have received numerous praises from our customers.
Our Workshop
Huadong Cable Group was established in 1999 and covers an area of 66,000 square meters, located in the Xiuwu Industrial Zone of Jiaozuo City, China. We have 20 advanced production lines and 25 testing machines, with an annual production capacity of over 15 million kilometers.
Why choose Huadong cable?
Our vision is to become an internationally renowned brand in the cable industry. Customer satisfaction, employee advancement, and corporate development are our service principles; high standards, globalization, and building an international brand are our business philosophy.
so br eh UA dong
Henan Huadong Cable Co., Ltd. was founded in 1999 and is a national high-tech enterprise integrating scientific research, industry, and trade. Huadong Cable is deeply involved in the construction of the Belt and Road Initiative and exports to over 130 countries worldwide, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.
Huadong Technology
Huadong Cable focuses on technology research and development, employing 60 professionals with advanced professional degrees and holding over 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure cable quality.
Main products
Our main products include marine cables, power cables, aerial cables, flame-resistant cables, low-smoke halogen-free cables, rubber cables, high-temperature resistant cables, instrument and control cables, solar cables, and other products.
ISO, SGS, BV certification; technical patents and product certification
