APPLICATION:
CCS cables and wires are used in power distribution networks for the construction of grounding systems or general use for electrical purposes.
- Construction:
- Cables composed of copper-clad steel wires with high and extra-high strength and conductivities of 30% and 40%.
- Construction characteristics:
- Conductor material: Copper-clad steel
- Conductor type : Circular , conductor Stranded
- Mechanical characteristics:
- Hardness type High-Strength
- Usage characteristics:
- Maximum operating temperature 75 °C
- Applicable Standards:
- • ASTM B228
- • ET-TD-ME01-29
Send More specification by email: supplier@huadongcablegroup.com
Similar Products
Especificación

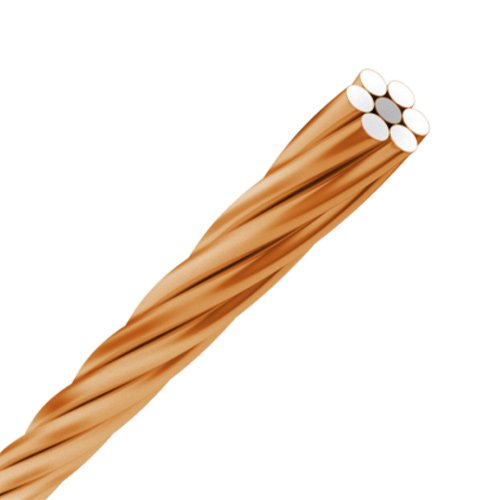

| Bare Copper Coated Steel Cables and Wires (CCS) |
|||||||
|---|---|---|---|---|---|---|---|
| Name | Cross section [mm²] | Nb Steel wire | Bare wire diameter [mm] | Outer Diameter [mm] | Approx. weight [kg/km] | Max. DC Resist. Cond. 20°C [Ohm/km] | Minimum breaking load [kgf] |
| 3x12AWG | 9.921 | 3 | 2.052 | 4.22 | 65.4 | 4.555 | 747 |
| 7x12 AWG | 23.167 | 7 | 2.052 | 6.16 | 194.71 | 1.956 | 1686 |
| 7x7 AWG | 73.847 | 7 | 3.665 | 11 | 608.5 | 0.613 | 5575 |
| 19x5 AWG | 318.789 | 19 | 4.622 | 23.11 | 3677.55 | 0.143 | 22108 |
